DEDALUS

Dedalus, the most agile among Dieci construction telehandlers.
Dedalus telehandlers are particularly suitable for use in road maintenance works, in town centers, underground and where narrow passages require strength and agility.
The key point of these compact, sturdy and dynamic vehicles, with increasing capacities and heights, are their manageability and speed of movement.
With a cab signed by Giugiaro Design and major upgrades on comfort and performance, these telehandlers optimize time, cost and production cycles. Easy to drive and practical to service, the Dedalus range provides the operator with a reliable, safe and versatile telehandler.
With its wide range of equipment, it can do all the jobs required on a construction site.

MODELS

DEDALUS

30.7 - GD

30.9 - GD

32.9 - GD

34.7 - GD

6600 lb
Maximum capacity - Maximum flow rate
20,8 ft
Maximum lifting height
74 HP (55,4 kW)
Maximum power
Dimensions
Height from ground
10,6 in
Maximum length
189,6 in
Cab height
80,3 in
Tire width
83,5 in
Wheels curve radius
166,9 in
Performance
Maximum capacity - Maximum flow rate
6600 lb
Maximum lifting height
20,8 ft
Maximum height on wheels
20,8 ft
Pull-out force
13039 lbf
Towing force
13039 lbf
Maximum speed
22,4 mph
Mass
Unladen weight
14771 lb
Engine
Brand
KUBOTA
Fueling
Diesel
Displacement
203 in3
Maximum power
74 HP (55,4 kW)
Emission standard
Stage V/Tier 4f
Hydraulic Circuit
Hydraulic pump capacity
26,4 gal/min
Maximum operating pressure
3553 psi
Transmission
Transmission type
Hydrostatic with variable displacement pump
Tires
Standard tires
405/70-20"""

2-SPEED HYDROSTATIC TRANSMISSION

  • Electronic control: maximum precision even at full speed
  • Inching pedal for controlled forward movement

  • Reduced consumption and operating costs

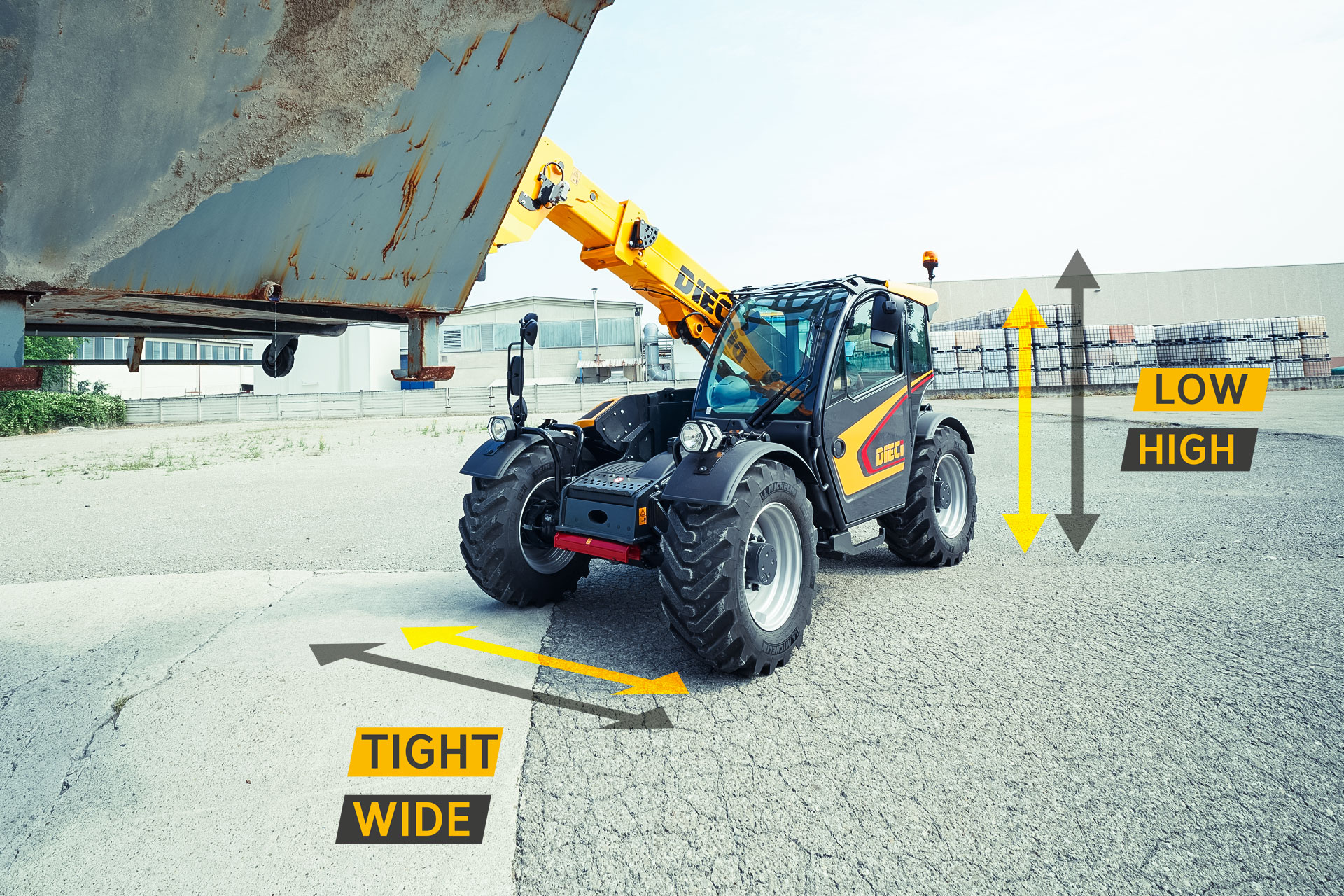

THE RIGHT SIZE

Now available in new sizes.
According to the requirement, the most appropriate size of vehicle can be selected for the specific job.
The different models are available in different widths and heights, while maintaining the same agility and efficiency.

STABLE AND SAFE

  • Arm too high function: the travel speed is limited automatically when the boom is raised.

  • Enhanced Soft Motion: boom movements more easy to control, with reduced speed on approaching the end of stroke physical limit and when the anti-tipping system is in pre-alarm conditions.

  • Anti-Tilt System: with aggravating movements blocked in the event of overload and load level always in evidence.

CAB BY GIUGIARO DESIGN

Exclusive Giugiaro design and style underscoring the efficiency and innovation of Dieci.
New cab with high quality soft-touch interior, heated seat with a choice of 3 suspension systems, more legroom for the operator, adjustable steering column and armrest, soundproof roof, dashboard and mat.
High visibility thanks to the large windows, LED work lights on the cab, perimeter and boom, electrically adjustable and heated wing mirrors and three wireless cameras that also inspect the most hidden points.
Optimized air-conditioning, with 6 air vents for quick window demisting, openable rear window and roof, integrated electric lateral window, double air filter protecting the operator from dust and odors.

EASY AND INTUITIVE

All boom movements are controlled by a single-lever joystick for intuitive and comfortable control.
Dashboard with clear instrument panel and well-distributed controls.
All vehicle control functions are handled by a single control unit that measures the best working parameters through an advanced diagnostic system.
The hydraulic distributors ensure more simultaneous movements and greater response to controls, for more effective work.

VERSATILE AND FLEXIBLE

The Dieci telehandlers have been designed to use the various equipment needed to carry out all the work required by a construction site: forks, loaders, lifting hooks, jibs with winches, grippers, material baskets, mixing buckets, concrete ladles, sweepers, salt spreader, snowplow blades.
Automatic equipment recognition: the vehicle configures itself automatically recognizing the equipment attached.

DIECI TELEMATIC SYSTEM

The DTS is the innovative system that allows to interact with the vehicle remotely to monitor its operating parameters, measure its performance and limit its use.
Operational data, collected via the cloud, allows routine maintenance cycles to be monitored, optimizing costs and maintaining high vehicle and fleet efficiency.
Vehicle and operators protected from theft thanks to the geolocation function.
